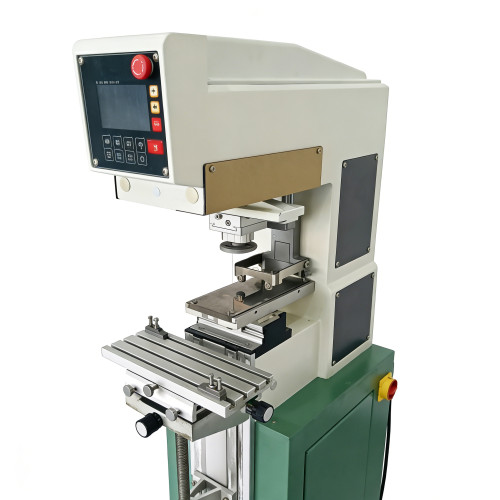

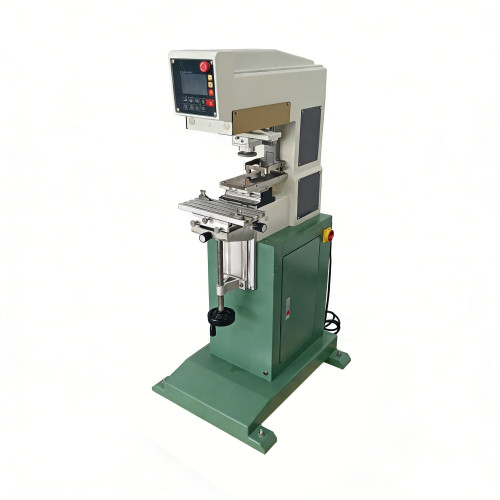

TXDK-115-90 Electric Single-Head Single-Color Ink Cup Pad Printer
- Model
- TXDK-115-90
Item specifics
- Machine Model
- TX DK-115-90
- Number of printable colors
- Single color
- Steel plate dimensions
- L100*W234mm
- Worktable dimensions
- L275*W115 mm
- Printing area
- L70*W70 mm
- Maximum workpiece height
- 150mm
- Forward and backward travel
- 115mm
- Vertical travel
- 80mm
- Printing speed
- 1500 prints/hour
- Power supply
- 220V / 110V 50/60HZ 50W
- Body dimensions
- L650*W560*H1250mm
- Packaging dimensions
- L750*W650*H1420mm
- Net weight
- 70kg
- Gross weight
- 100kg
Review
Description
Basic parameters:
Machine Model: TX DK-115-90
Number of printable colors: Single color
Steel plate dimensions: L100*W234mm
Worktable dimensions: L275*W115 mm
Printing area: L70*W70 mm
Maximum workpiece height: 150mm
Forward and backward travel: 115mm
Vertical travel: 80mm
Printing speed: 1500 prints/hour
Power supply: 220V / 110V 50/60HZ 50W
Body dimensions: L650*W560*H1250mm
Packaging dimensions: L750*W650*H1420mm
Net weight: 70kg
Gross weight: 100kg
Features:

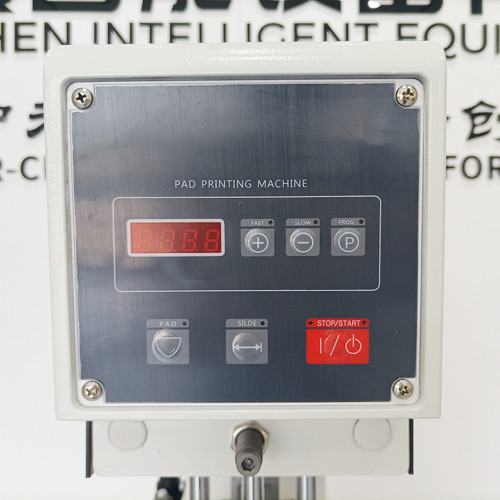

1. Hall effect magnetic encoder control system with touch screen interface, simple and convenient to operate.
2. Equipped with a built-in four-digit automatic counter. Facilitates production capacity statistics.
3. The machine frame is made of high-quality aluminum alloy, which is lightweight and sturdy.
4. The closed-loop, non-inking system is environmentally friendly and improves ink utilization .
5. Precision closed-loop motor control for each action, digital stroke adjustment, convenient machine adjustment, and precise operation.
6. You can dip the ink twice before printing once to obtain a larger amount of printing ink, resulting in a thicker ink layer.
7. Allows for blank lines before and after to prevent ink from drying out during short breaks.
