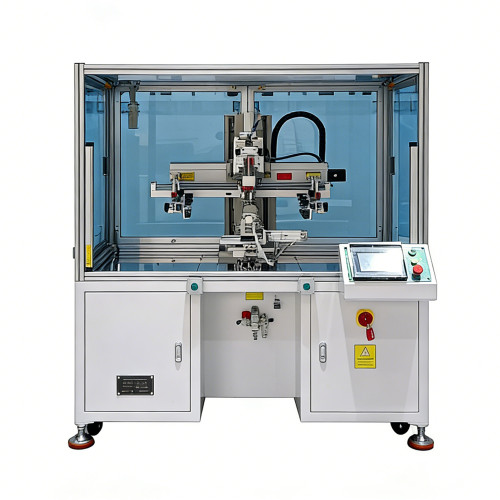

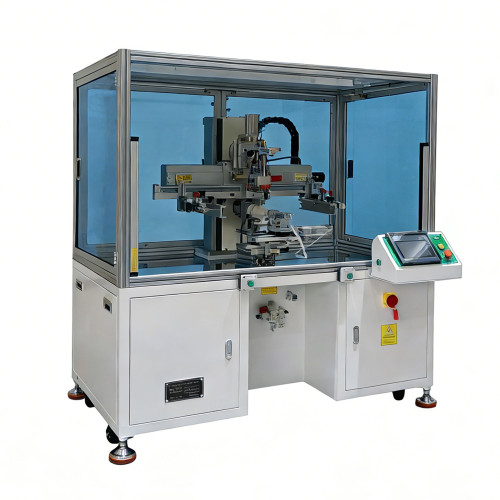

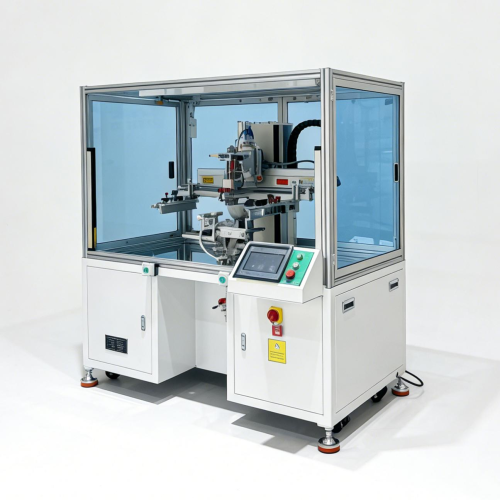

TX-500SZ Three-Axis Semi-Automatic Servo Piston Printing Machine

Model: TX-500SZ

Item specifics

model: TX-500SZ

Printing speed: 400-800pcs/h

power supply: 1AC/220V/50HZ

Printed layer thickness: 3-13 micrometers

Printing diameter: φ71mm

Printing area: 100*450mm

Maximum screen size: 300×650mm

Printing screen pressure: 0.3-0.5MPa

Review

Description

Performance Features

1. Drive and control : Siemens PLC + touch screen control, three-axis servo bus drive, supports manual/semi-automatic switching, printing stroke, speed, and screen distance can be stored and recalled with one click, and the operation threshold is low.

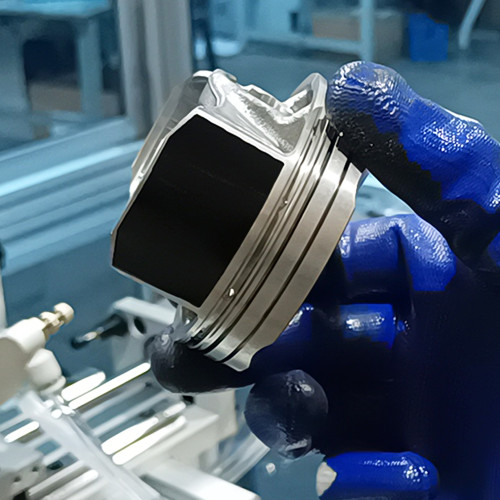

2. Printing and positioning mechanism : Automatic squeegee/ink return/screen lifting, automatic squeegee balancing; fine adjustment of the worktable in front and behind, left and right, and up and down, adaptable to the elliptical skirt of the piston and irregular curved surfaces; optional vacuum platform, thin-walled piston without indentation.
