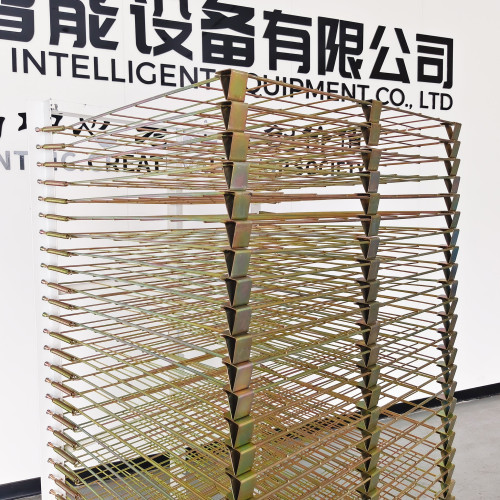

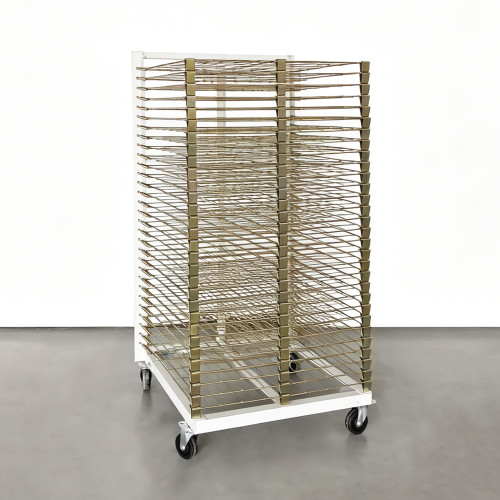

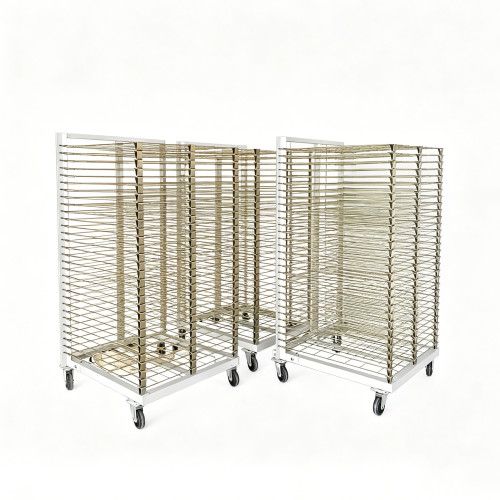

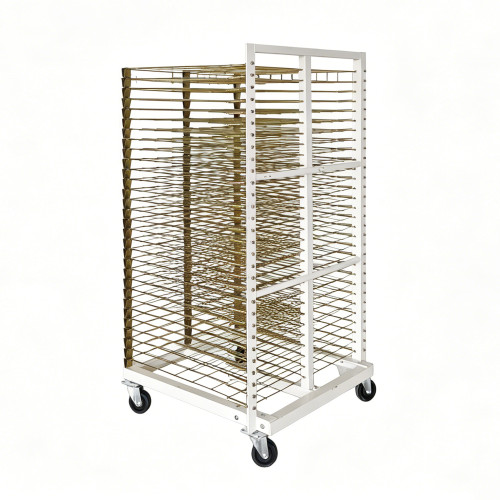

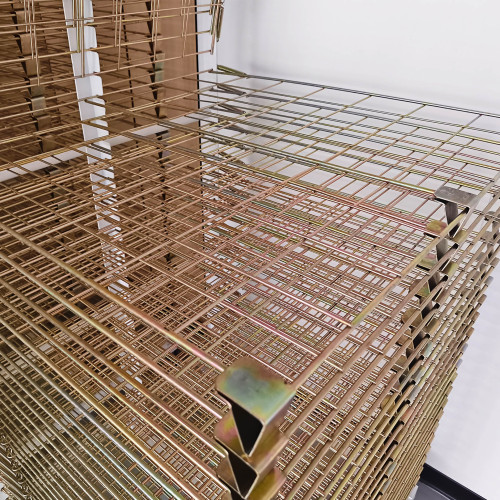

Mobile Multi Layer Drying Rack TX-LJ7575 for Screen Printing & Coating Workpieces

Model: TX-LJ7575

Item specifics

Model: TX-LJ7575

Number of mesh layers: 30

Mesh foot height: 45mm/layer

Material: Galvanized iron and powder coating

Number of mesh feet: 3 pcs / layer

Mesh size: 750*750mm

Wire diameter: 6*3.5mm

Main frame accessories: Screw lock springs

Grid size: 100*100mm

Dimensions: 850*850*158mm

Load Capacity: 6 KG/layer

Review

Description

Introduction of TX-LJ7575 Multi-layer Drying Rack

This multi-layer drying rack is specially designed for screen printing workshops. Made of galvanized iron with powder coating, it features excellent rust resistance, sturdy structure and long service life. Equipped with movable casters, it allows flexible workpiece turnover. Each mesh layer offers reliable load capacity, preventing workpieces from scratching or falling.

Available with customizable mesh layers and spacing, it meets diverse production demands. Widely used for natural air-drying and baking circulation, it fits screen printed goods, glass, metal plates, paper, PET sheets and plastic parts perfectly. A practical and space-saving solution to improve your workshop efficiency.

Specification

Model			TX-LJ7575
Mesh layers			30
Mesh foot height			45mm/layer
Main frame material			Galvanized iron with powder coating
Number ofmesh feet			3 pcs / layer
Mesh size			750*750mm
Wire diameter			6*3.5mm
Main frame accessories			Screw lock springs
Grid size			100*100mm
Dimensions			850850158mm
