TX-40220ST Semi-Automatic Flat Screen Printing Machine for Long Strip Plastic Part
- Model
- TX-40220ST
Item specifics
- Printing color
- Single color
- Operating mode
- Semi-automatic
- Printing speed
- 500 pcs/hr
- Maximum mesh frame size
- 600*2400mm
- Printing size
- 400*2200mm
- Printing Thickness
- 50mm
- Printing pressure
- 4.0~6.0 kfg/c㎡
- Voltage/power
- 380V/50HZ / 4.5KW
- Dimension
- 3000*800*1900m
- Printing type
- Screen Printing Machine
- Weight
- 1500 KG
Review
Description
Introduction of TX-40220ST Semi-automatic Flat Screen Printing Machine
Application:
This TX-40220ST semi-automatic flatbed screen printing machine is suitable for flat printing on products such as long strips of glass, wood boards, metal sheets, and advertising signs . It is also suitable for flat printing on products with high registration accuracy requirements, such as gold and silver cardboard, thin metal sheets, and PVC as substrates.
Main performance
① Vertical structure, the vertical lifting of the screen is driven by a variable frequency electric motor, and the left and right movement of the printing head is driven by a variable frequency electric motor.
② The microcomputer control circuit uses independent motors to drive both printing and screen lifting .

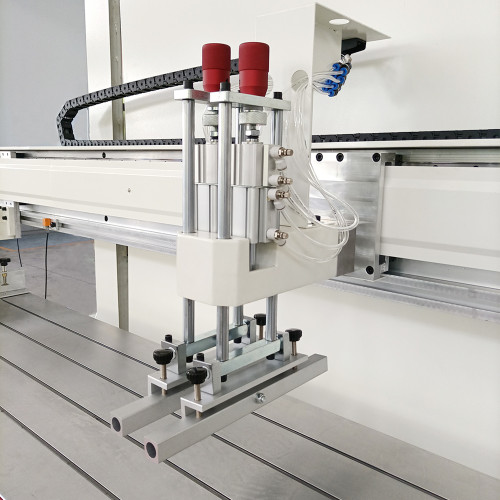

③ The switching of the printing /return ink blade holder is driven by a Taiwanese brand cylinder , with the stroke controlled by a photoelectric eye and independently calibrated.
④ Three modes are set up: manual, semi-automatic, and fully automatic, with digital control of printing indirect time.

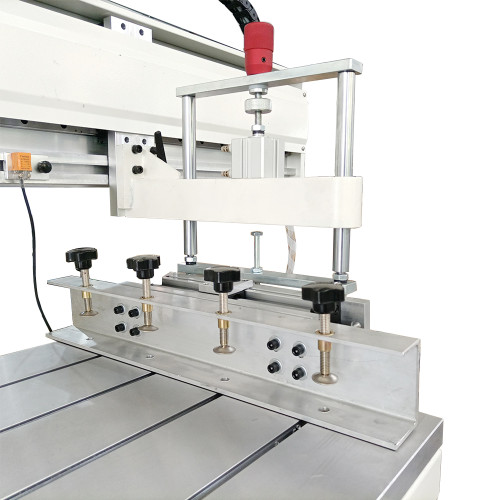

⑤ The independently designed head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.

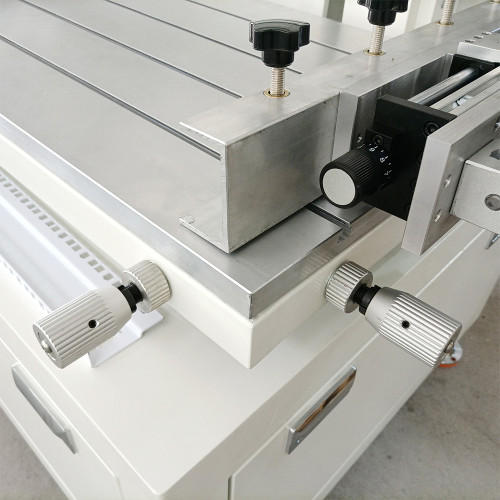

⑥ The left and right mesh clamps are equipped with double guide posts and a plate spacing adjustment device for easy adjustment.
Specification
Model | TX-40220ST | |||||||
Table Size | 500*2300mm | |||||||
Substrate Thickness | 50 mm | |||||||
Max Printing Area | 400*2200mm | |||||||
Printing speed | 550 pcs/h | |||||||
Maximum screen frame size | 600*2400mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/50HZ /3.0KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 3000*700*1900mm | |||||||
Machine Weight | 1500KG | |||||||

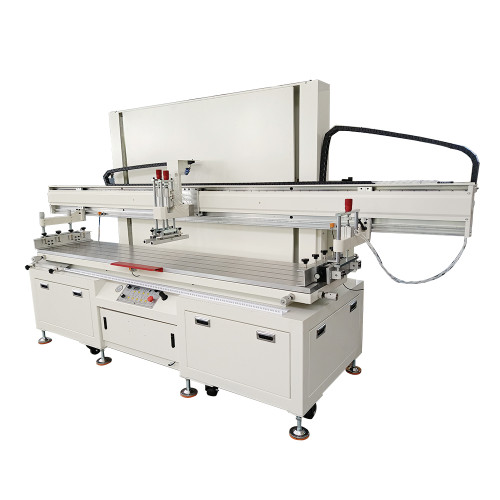

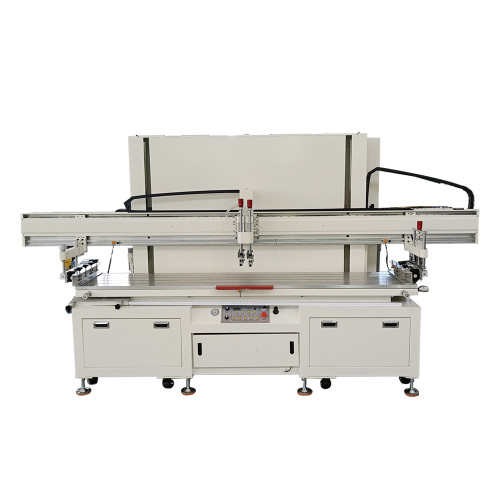

Machine image
Printing samples
