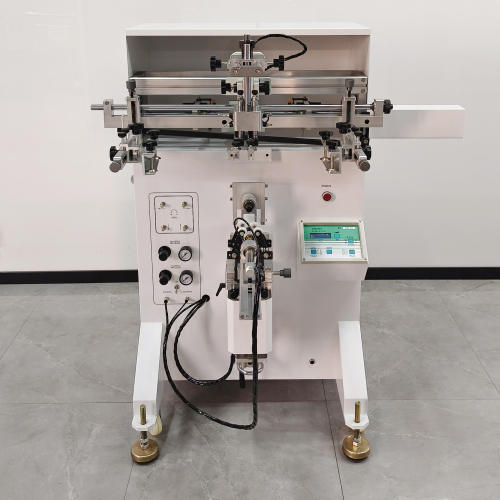

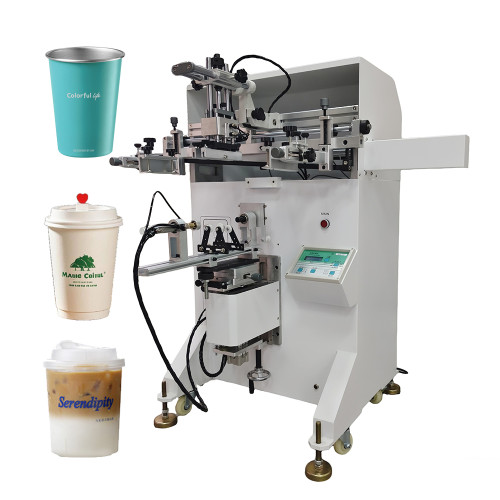

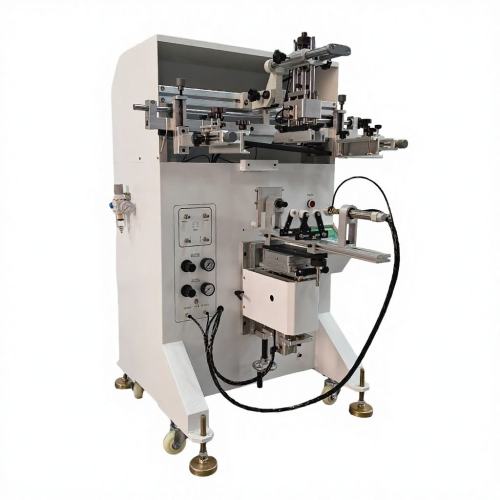

New 400SM Semi-automatic Dual-Purpose Curved Surface Flat Screen Printing Machine for Cups Food Containers
- Model
- TX-400SM
Item specifics
- Printing color
- single color
- Operating mode
- semi-automatic
- Printing speed
- 1200pcs/h
- Maximum mesh frame size
- 400*600mm
- Maximum Print Size
- Cylindrical Φ110*L200mm， Plane 300*200 mm
- Maximum print Length
- ≤200mm
- Air pressure
- 4.0~6.0 kfg/cm2
- Application area
- cups, bottles, tubes, mugs, jars
- Product name
- Cylindrical screen printing machine
- Dimensions(L*W*H)
- 950*950*1250mm
- Net Weight
- 115KG
- Model
- TX-400sm
- Print taper
- Forward ≤15°, Negative ≤7°
- Packing dimensions
- 1000 *1000*1400 mm
Review
Description
We have two colors of white and blue to choose from, these two regular models are basically in stock.
Application
This flat and curved surface screen printing machine can be widely used for various cosmetic containers, pharmaceutical containers, food containers, electronic components, toys, machine casings, etc.
Specification
|
Product name
|
Cylindrical screen printing machine
|
|
Product model
|
TX-400SM
|
|
Application area
|
cups, bottles, tubes, mugs, jars
|
|
Printing Speed
|
1500 pcs/h
|
|
Maximum Print Area Round
|
φ70mm
|
Maximum Print Area Oval | Arc Length 200mm |
Maximum print Length | 200mm |
Maximum Screen Frame Size | 400*600mm |
Air pressure: | 4.0~6.0 kfg/cm² |
Voltage | 220V/50HZ/20W |
Dimensions(L*W*H) | 950*950*1250mm |
Net Weight | 115KG |
Printing Samples
